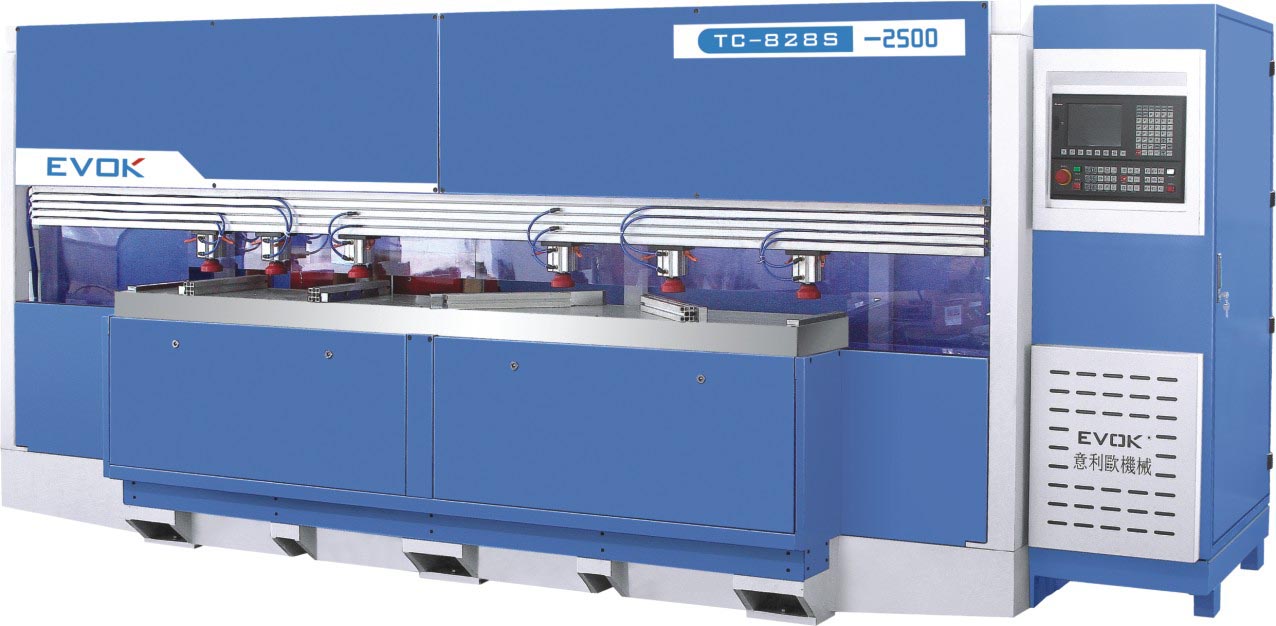

TC-828S 2500 多功能數(shù)控榫接機(jī)
Features:
1.4 spindles correspond to 4 cutter heads
2.Can process 45 degrees, 90 degrees, 135 degrees.
3.Max processing length is 2.5meter.
THE TECHNICAL PARAMETER
◎Power source : 380V/50Hz/3HP+N
◎Panel width for 45°: 40-120mm
◎Panel width for 135°: 40-150mm
◎Panel height: 20-70mm
◎Air pressure: 0.6-0.8Mpa
◎Total power: 25KW
◎Machine weight: 3000KG
◎Machine size: 4650*1450*1860mm
